规格参数

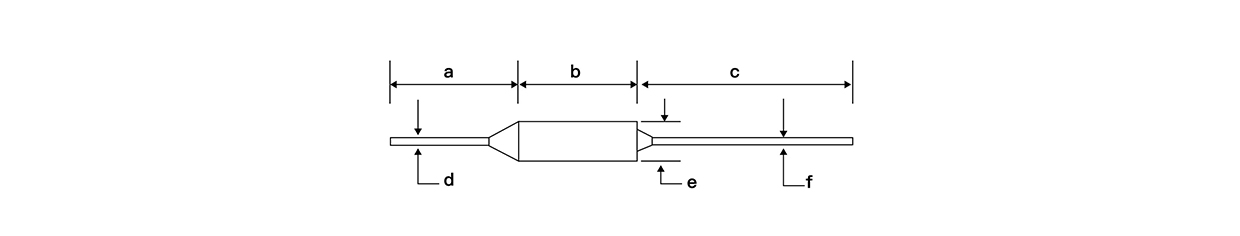

單位：mm
系列 | a | b | c | d | e | f |
BF | 20±1.0 | 11±1.0 | 35±1.0 | Ф1.0±0.1 | Ф4.0±0.1 | Ф1.0±0.1 |
型號 | 額定動作溫度 Tf(℃) | 實測動作溫度（℃） | 保持溫度 Th(UL）(℃) | 極限溫度 Tm(℃) | 額定電流 Ir(A) | 額定電壓 Ur(V) | |
IEC | Corp | ||||||
BF73 | 73 | 73+0/-10 | 70±2 | 58 | 200 | 10 | 250 |
BF77 | 77 | 77+0/-10 | 74±2 | 62 | 300 | 10 | 250 |
BF84 | 84 | 84+0/-10 | 82±2 | 69 | 300 | 10 | 250 |
BF94 | 94 | 94+0/-10 | 90±2 | 79 | 300 | 10 | 250 |
BF99 | 99 | 99+0/-10 | 95±2 | 84 | 300 | 10 | 250 |
BF104 | 104 | 104+0/-10 | 101+2/-3 | 90 | 210 | 10 | 250 |
BF113 | 113 | 113+0/-10 | 110±2 | 98 | 400 | 10 | 250 |
BF117 | 117 | 117+0/-10 | 114±2 | 102 | 400 | 10 | 250 |
BF121 | 121 | 121+0/-10 | 118±2 | 106 | 400 | 10 | 250 |
BF133 | 133 | 133+0/-10 | 131+2/-3 | 119 | 400 | 10 | 250 |
BF142 | 142 | 142+0/-10 | 138+2/-3 | 127 | 400 | 10 | 250 |
BF157 | 157 | 157+0/-10 | 155±2 | 142 | 400 | 10 | 250 |
BF172 | 172 | 172+0/-10 | 169+2/-3 | 157 | 400 | 10 | 250 |
BF184 | 184 | 184+0/-10 | 181±2 | 169 | 400 | 10 | 250 |
BF192 | 192 | 192+0/-10 | 189±2 | 177 | 400 | 10 | 250 |
BF216 | 216 | 216+0/-10 | 212±2 | 191 | 450 | 10 | 250 |
BF229 | 229 | 229+0/-10 | 226±2 | 201 | 450 | 10 | 250 |
BF240 | 240 | 240+0/-10 | 235±3 | 201 | 450 | 10 | 250 |
BF257 | 257 | 257+0/-10 | 254±2 | 200 | 470 | 10 | 250 |
型號 | UL/CUL | VDE | CCC | PSE | KC |
BF73 | E140847 | 40005418 | 2003010205052188 | JET0749-32001-1007 | SU05017-11001 |
BF77 | |||||
BF84 | JET0749-32001-1008 | ||||
BF94 | |||||
BF99 | |||||
BF104 | JET0749-32001-1009 | SU05017-11002 | |||
BF113 | |||||
BF117 | |||||
BF121 | JET0749-32001-1010 | SU05017-11003 | |||
BF133 | |||||
BF142 | JET0749-32001-1011 | ||||
BF157 | |||||
BF172 | JET0749-32001-1012 | SU05017-11004 | |||
BF184 | JET0749-32001-1013 | ||||
BF192 | |||||
BF216 | JET0749-32001-1014 | SU05017-11005 | |||
BF240 | JET0749-32001-1015 | ||||
BF257 | ○ | ○ | ○ | ○ | |
| ○ 待定 |
